CAS Number852-38-0
SynonymsEINECS 212-712-0; 2-phenyl-5-(4-phenylphenyl)-1,3,4-oxadiazole; MFCD00003100
Molecular FormulaC20H14N2O
Molecular Weight298.33800
Purity98.00%
Density1.172g/cm3
Boiling Point480.7ºC at 760 mmHg
Melting Point167-169 °C(lit.)
AppearanceWhite fine crystalline powder
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 852-38-0 |
| Catalog No. | 2A-9025422 |
| Chinese Name | 2-(4-联苯基)-5-苯基恶二唑 |
| Synonyms | EINECS 212-712-0; 2-phenyl-5-(4-phenylphenyl)-1,3,4-oxadiazole; MFCD00003100 |
| Molecular Formula | C20H14N2O |
| Molecular Weight | 298.33800 |
| Purity | 98.00 |
| Density | 1.172g/cm3 |
| Boiling Point | 480.7ºC at 760 mmHg |
| Melting Point | 167-169 °C(lit.) |
| Appearance | White fine crystalline powder |
| Storage Condition | Store airtight at 2-8°C. |
| Application | 2-(4-biphenyl)-5-phenyl-1,3,4-oxadiazole is a laser dye with high photoluminescence quantum efficiency [1]. |
| HTC | 2934999090 |
| UN(IATA) | NA |

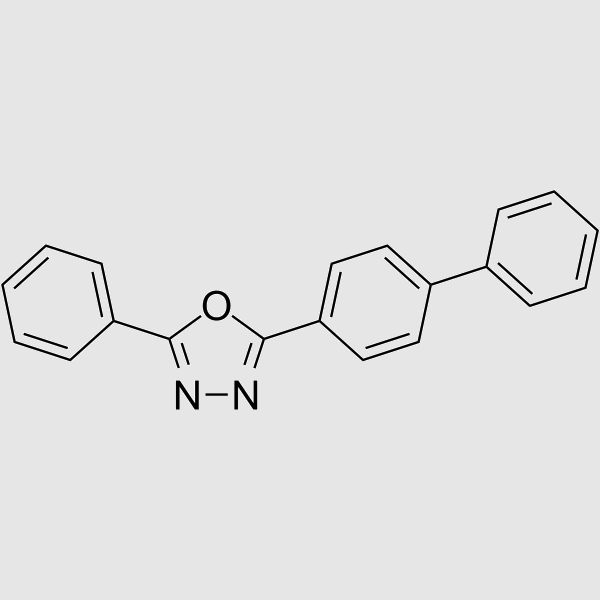

| SMILES | c1ccc(-c2ccc(-c3nnc(-c4ccccc4)o3)cc2)cc1 |
| InChI | InChI=1S/C20H14N2O/c1-3-7-15(8-4-1)16-11-13-18(14-12-16)20-22-21-19(23-20)17-9-5-2-6-10-17/h1-14H |
| InChI Key | WMAXWOOEPJQXEB-UHFFFAOYSA-N |
| Bioactivity | 2-(4-Biphenylyl)-5-phenyl-1,3,4-oxadiazole is a laser dyes with high photoluminescence (PL) quantum efficiency[1]. Related Catalog Research Areas >> Others Signaling Pathways >> Others >> Others References [1]. Wang C, et al. Polymeric Alkoxy PBD [2-(4-Biphenylyl)-5-Phenyl-1, 3, 4-Oxadiazole] for Light-Emitting Diodes. Advanced Functional Materials, 2001, 11(1): 47-50. Chemical & Physical Properties Density 1.172g/cm3 Boiling Point 480.7ºC at 760 mmHg Melting Point 167-169 °C(lit.) Molecular Formula C20H14N2O Molecular Weight 298.33800 Flash Point 240.7ºC Exact Mass 298.11100 PSA 38.92000 LogP 5.07060 Index of Refraction 1.612 InChIKey WMAXWOOEPJQXEB-UHFFFAOYSA-N SMILES c1ccc(-c2ccc(-c3nnc(-c4ccccc4)o3)cc2)cc1 Storage condition 2-8°C |
| Use of | 2-(4-Biphenylyl)-5-phenyl-1,3,4-oxadiazole is a laser dyes with high photoluminescence (PL) quantum efficiency[1]. Properties Articles29 Name 2-(4-Biphenylyl)-5-phenyl-1,3,4-oxadiazole Synonym More Synonyms Biological Activity Description 2-(4-Biphenylyl)-5-phenyl-1,3,4-oxadiazole is a laser dyes with high photoluminescence (PL) quantum efficiency[1]. Related Catalog Research Areas >> Others Signaling Pathways >> Others >> Others References [1]. Wang C, et al. Polymeric Alkoxy PBD [2-(4-Biphenylyl)-5-Phenyl-1, 3, 4-Oxadiazole] for Light-Emitting Diodes. Advanced Functional Materials, 2001, 11(1): 47-50. Chemical & Physical Properties Molecular Formula C20H14N2O Exact Mass 298.11100 PSA 38.92000 LogP 5.07060 Index of Refraction 1.612 InChIKey WMAXWOOEPJQXEB-UHFFFAOYSA-N |
| Tax Rebate | 13.0% |
| Supervision | None. MFN tariff: 6.5%. Ordinary tariff: 20.0% |
| Transport Info | Product name: Summary 2934999090. other heterocyclic compounds. VAT:17.0%. Tax rebate rate:13.0%. . MFN tariff:6.5%. General tariff:20.0% |
