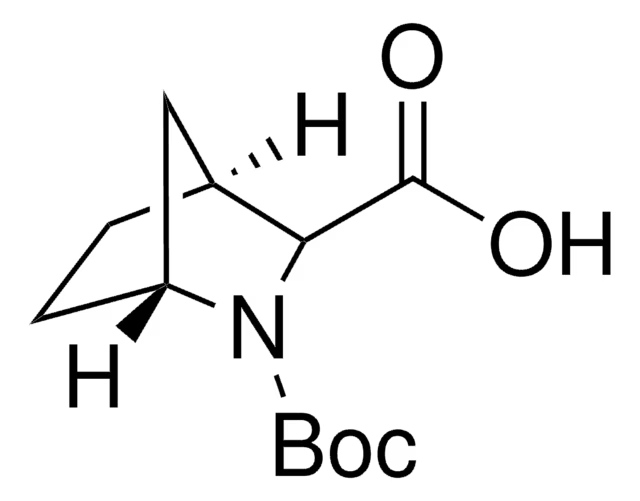

![(3R)-N-Boc-2-azabicyclo[2.2.1]heptane-3-carboxylic acid structure, CAS 291775-53-6](/structures/100000/93408_1_291775_53_6.png)
CAS Number291775-53-6
Synonyms(1S,3R,4R)-N-tert-butoxycarbonyl-2-azabicyclo[2.2.1]heptane-3-carboxylic acid; exo-2-Azabicyclo[2.2.1]heptane-2,3-dicarboxylic acid 2-(1,1-dimethylethyl) ester; (3R)-N-Boc-2-azabicyclo[2.2.1]heptane-3-carboxylic acid
Molecular FormulaC12H19NO4
Molecular Weight241.28
Purity97%
Melting Point147-152 °C
Appearancepowder
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 291775-53-6 |
| Catalog No. | 2A-9093408 |
| Chinese Name | (3R)-N-BOC-2-氮杂双环[2.2.1]庚烷-3-羧酸 |
| Synonyms | (1S,3R,4R)-N-tert-butoxycarbonyl-2-azabicyclo[2.2.1]heptane-3-carboxylic acid; exo-2-Azabicyclo[2.2.1]heptane-2,3-dicarboxylic acid 2-(1,1-dimethylethyl) ester; (3R)-N-Boc-2-azabicyclo[2.2.1]heptane-3-carboxylic acid |
| Molecular Formula | C12H19NO4 |
| Molecular Weight | 241.28 |
| Purity | 97 |
| Melting Point | 147-152 °C |
| Appearance | powder |
| Storage Condition | room temperature |
| PubChem ID | 329761746 |
| MDL Number | MFCD11099876 |
| SMILES | CC(C)(C)OC(=O)N1C2CCC(C2)[C@H]1C(O)=O |
| InChI | 1S/C12H19NO4/c1-12(2,3)17-11(16)13-8-5-4-7(6-8)9(13)10(14)15/h7-9H,4-6H2,1-3H3,(H,14,15)/t7-,8+,9-/m0/s1 |
| InChI Key | IFAMSTPTNRJBRG-YIZRAAEISA-N |
| NACRES Code | NA.22 |
| UNSPSC | 12352005 |
| MSDS | msds/93408_1_291775_53_6.pdf |
| Transport Info | Product name: (1S,3R,4R)-2-[(tert-butoxy)carbonyl]-2-azabicyclo[2.2.1]heptane-3-carboxylic acid |
