CAS Number4730-54-5
Synonyms1,4,7-Triazonane; Octahydro-1H-1,4,7-triazonine; 1,4,7-Triazacyclononane; MFCD00012358; Triethylenetriamine
Molecular FormulaC6H15N3
Molecular Weight129.20
Purity95%
Density0.9±0.1 g/cm3
Boiling Point110-130 °C/7 mmHg (lit.)
Melting Point42-45 °C (lit.)
Appearancesolid
Symbol
Signal WordWarning
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 4730-54-5 |
| Catalog No. | 2A-9031152 |
| Chinese Name | 1,4,7-三氮杂环壬烷 |
| Synonyms | 1,4,7-Triazonane; Octahydro-1H-1,4,7-triazonine; 1,4,7-Triazacyclononane; MFCD00012358; Triethylenetriamine |
| Molecular Formula | C6H15N3 |
| Molecular Weight | 129.20 |
| Purity | 95 |
| Density | 0.9±0.1 g/cm3 |
| Boiling Point | 110-130 °C/7 mmHg (lit.) |
| Melting Point | 42-45 °C (lit.) |
| Appearance | solid |
| Water Solubility | Water solubility: soluble |
| Storage Condition | 2-8℃, avoid light, ventilated and dry place, seale |
| Packaging | III |
| Application | 1,4,7-triazane (1,4,7-triazacyclononane) is an intermediate for the synthesis of 1,4,7-trifunctional derivatives and is a complex titration reagent with high cation binding selectivity [1][2]. |
| HTC | 2933990090 |
| PubChem ID | 24858511 |
| MDL Number | MFCD00012358 |

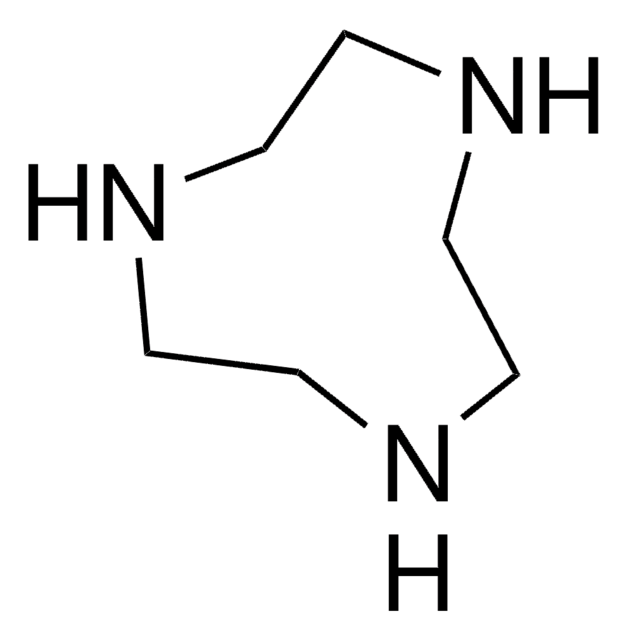

| SMILES | C1CNCCNCCN1 |
| InChI | 1S/C6H15N3/c1-2-8-5-6-9-4-3-7-1/h7-9H,1-6H2 |
| InChI Key | ITWBWJFEJCHKSN-UHFFFAOYSA-N |
| Beilstein/REAXYS | 773877 |
| NACRES Code | NA.22 |
| UNSPSC | 12352005 |
| Hazard Symbols | transportation |
| MSDS | msds/31152_1_4730_54_5.pdf |
| Bioactivity | 1,4,7-Triazonane (1,4,7-Triazacyclononane), an intermediate in the synthesis of 1,4,7-trifunctionalized derivatives, is a possible reagent for compleximetric titrations with high cation-binding selectivity[1][2]. Related Catalog Research Areas >> Others Signaling Pathways >> Others >> Others In Vitro 1,4,7-Triazonane is an intermediate in the synthesis of 1,4,7-trifunctionalized derivatives that have applications in metal complexation[2]. References [1]. Nonat A, et, al. Structural and photophysical studies of highly stable lanthanide complexes of tripodal 8-hydroxyquinolinate ligands based on 1,4,7-triazacyclononane. Inorg Chem. 2009 May 4;48(9):4207-18. [2]. Guo JF, et, al. trans-[Os(III)(salen)(CN)(2)](-): a new paramagnetic building block for the construction of molecule-based magnetic materials. Inorg Chem. 2010 Feb 15;49(4):1607-14. Chemical & Physical Properties Density 0.9±0.1 g/cm3 Boiling Point 254.1±0.0 °C at 760 mmHg Melting Point 42-45ºC(lit.) Molecular Formula C6H15N3 Molecular Weight 129.20 Flash Point 87.2±13.5 °C Exact Mass 129.126602 PSA 36.09000 LogP -1.76 Appearance of Characters crystal | white Vapour Pressure 0.0±0.5 mmHg at 25°C Index of Refraction 1.424 InChIKey ITWBWJFEJCHKSN-UHFFFAOYSA-N SMILES C1CNCCNCCN1 Storage condition 2-8°C |
| Use of | 1,4,7-Triazonane (1,4,7-Triazacyclononane), an intermediate in the synthesis of 1,4,7-trifunctionalized derivatives, is a possible reagent for compleximetric titrations with high cation-binding selectivity[1][2]. Properties Name 1,4,7-triazonane Synonym More Synonyms 1,4,7-triazonane Biological Activity Description 1,4,7-Triazonane (1,4,7-Triazacyclononane), an intermediate in the synthesis of 1,4,7-trifunctionalized derivatives, is a possible reagent for compleximetric titrations with high cation-binding selectivity[1][2]. Related Catalog Research Areas >> Others Signaling Pathways >> Others >> Others In Vitro 1,4,7-Triazonane is an intermediate in the synthesis of 1,4,7-trifunctionalized derivatives that have applications in metal complexation[2]. References [1]. Nonat A, et, al. Structural and photophysical studies of highly stable lanthanide complexes of tripodal 8-hydroxyquinolinate ligands based on 1,4,7-triazacyclononane. Inorg Chem. 2009 May 4;48(9):4207-18. [2]. Guo JF, et, al. trans-[Os(III)(salen)(CN)(2)](-): a new paramagnetic building block for the construction of molecule-based magnetic materials. Inorg Chem. 2010 Feb 15;49(4):1607-14. Chemical & Physical Properties Molecular Formula C6H15N3 Exact Mass 129.126602 PSA 36.09000 LogP -1.76 Appearance of Characters crystal | white Index of Refraction 1.424 InChIKey ITWBWJFEJCHKSN-UHFFFAOYSA-N |
| Tax Rebate | 13.0% |
| Supervision | None. MFN tariff: 6.5%. Ordinary tariff: 20.0% |
| Transport Info | Shipping Name: UN |
| MSDS Transport Info | Module 14. Shipping information 14.1 UN dangerous goods number European Dangerous Regulations for land transport: 3259 International Dangerous Regulations for sea transport: 3259 International Dangerous Regulations for air transport: 3259 14.2 United Nations shipping name European Land Transport Dangerous Regulations: POLYAMINES, SOLID, CORROSIVE, N.O.S. (1,4,7-Triazacyclononane) IMDG Code: POLYAMINES, SOLID, CORROSIVE, N.O.S. (1,4,7-Triazacyclononane) IFRS: Polyamines, solid, corrosive, n.o.s. (1,4,7-Triazacyclononane) 14.3 Transport hazard categories European Dangerous Regulations for land transport: 8 International Dangerous Regulations for sea transport: 8 International Dangerous Regulations for air transport: 8 14.4 Package group European Dangerous Regulations for land transport: II International Dangerous Regulations for sea transport: II International Dangerous Regulations for air transport: II 14.5 Environmental hazards European Land Transport Danger Regulations: No International Maritime Danger Regulations International Air Transport Danger Regulations: No Marine pollutants (yes/no): No 14.6 Special reminder to users No data available |
