CAS Number129-17-9
SynonymsPatent Blue VF,indicator grade; EINECS 204-934-1; Acid blue 1 sodium salt,Disulfin blue VN 150 sodium salt; Acid Blue 1 Sulfan Blue; MFCD00012119; patent blue violet

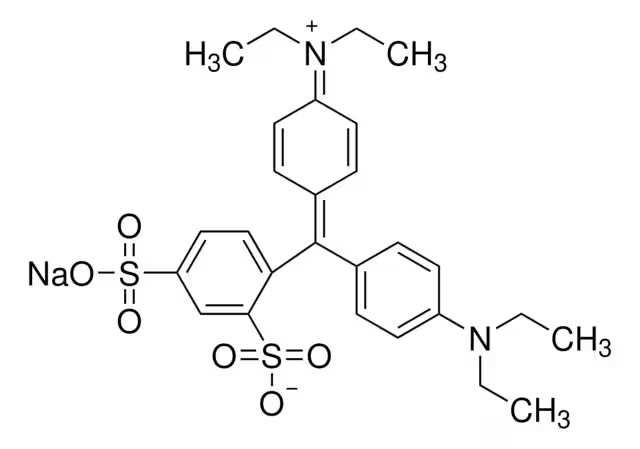

Molecular FormulaC27H31N2NaO6S2
Molecular Weight566.66
Purity98.00%
Melting Point290ºC
Appearancepowder
EINECS204-934-1
Symbol
Signal WordWarning
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 129-17-9 |
| Catalog No. | 2A-9020630 |
| Chinese Name | 专利兰VF |
| Synonyms | Patent Blue VF,indicator grade; EINECS 204-934-1; Acid blue 1 sodium salt,Disulfin blue VN 150 sodium salt; Acid Blue 1 Sulfan Blue; MFCD00012119; patent blue violet |
| Molecular Formula | C27H31N2NaO6S2 |
| Molecular Weight | 566.66 |
| Purity | 98.00 |
| Melting Point | 290ºC |
| Appearance | powder |
| Water Solubility | 1 g/20 mL (20 ºC) |
| Storage Condition | Warehouse Ventilation Low Temperature Drying |
| Application | Patent Blue V (Acid Blue 1) is a new biological dye that can be used as an intraocular dye for retinectomy. Retinectomy involves removal of the translucent internal limiting membrane (ILM). Complete r |
| EINECS | 204-934-1 |
| HTC | 32041200 |
| PubChem ID | 24851867 |
| MDL Number | MFCD00012119 |
| SMILES | [Na+].CCN(CC)c1ccc(cc1)\C(=C2/C=CC(\C=C2)=[N+](\CC)CC)c3ccc(cc3S([O-])(=O)=O)S([O-])(=O)=O |
| InChI | 1S/C27H32N2O6S2.Na/c1-5-28(6-2)22-13-9-20(10-14-22)27(21-11-15-23(16-12-21)29(7-3)8-4)25-18-17-24(36(30,31)32)19-26(25)37(33,34)35;/h9-19H,5-8H2,1-4H3,(H-,30,31,32,33,34,35);/q;+1/p-1 |
| InChI Key | SJEYSFABYSGQBG-UHFFFAOYSA-M |
| NACRES Code | NA.47 |
| UNSPSC | 12171500 |
| Hazard Symbols | Transport |
| MSDS | msds/20630_1_129_17_9.pdf |
| Bioactivity | Patent Blue V (Acid blue 1) is a novel biological dye that can be used as an intraocular dye for retinectomy. Retinectomy refers to the removal of the translucent inner limiting membrane (ILM). The application of appropriate dyes in vitreoretinal surgery can achieve the purpose of complete removal. Patent Blue V can be used to stain retinal premembranous structures. Spectral analysis shows that Patent Blue V has strong absorption below 450 nm and above 600 nm, showing a blue-green color. Patent Blue V is also used as a marker in lymphangiography for resection of neoplastic lymph nodes[1][2]. Related Catalog Research Areas >> Cancer References [1]. Mennel S, et al. Patent blue: a novel vital dye in vitreoretinal surgery. Ophthalmologica. 2006;220(3):190-3. [2]. Barranger E, et al. Laparoscopic sentinel lymph node procedure using a combination of patent blue and radioisotope in women with cervical carcinoma. Cancer. 2003 Jun 15;97(12):3003-9. Chemical & Physical Properties Melting Point 290ºC Molecular Formula C27H31N2NaO6S2 Molecular Weight 566.665 Exact Mass 566.152100 PSA 137.41000 LogP 5.92380 InChIKey SJEYSFABYSGQBG-UHFFFAOYSA-M SMILES CCN(CC)c1ccc(C(=C2C=CC(=[N+](CC)CC)C=C2)c2ccc(S(=O)(=O)[O-])cc2S(=O)(=O)[O-])cc1.[Na+] Stability Stable. Incompatible with strong oxidizing agents. Water Solubility 1 g/20 mL (20 ºC) |
| Use of | Properties Articles29 Name Patent Blue VF Synonym More Synonyms patent blue violet Biological Activity Related Catalog Research Areas >> Cancer References [1]. Mennel S, et al. Patent blue: a novel vital dye in vitreoretinal surgery. Ophthalmologica. 2006;220(3):190-3. [2]. Barranger E, et al. Laparoscopic sentinel lymph node procedure using a combination of patent blue and radioisotope in women with cervical carcinoma. Cancer. 2003 Jun 15;97(12):3003-9. Chemical & Physical Properties Molecular Formula C27H31N2NaO6S2 Exact Mass 566.152100 PSA 137.41000 LogP 5.92380 InChIKey SJEYSFABYSGQBG-UHFFFAOYSA-M Stability Stable. Incompatible with strong oxidizing agents. |
| Transport Info | Product name: Purity: 98.0% |
| MSDS Transport Info | Module 14. Shipping information 14.1 UN dangerous goods number European Land Transport Dangerous Regulations: -International Maritime Dangerous Regulations: -International Air Transport Dangerous Regulations: - 14.2 Names specified by the United Nations (UN) European Land Transport Dangerous Regulations: Non-dangerous goods IMDG Code: Non-dangerous goods International air transport dangerous goods regulations: non-dangerous goods 14.3 Transport hazard categories European Land Transport Dangerous Regulations: -International Maritime Dangerous Regulations: -International Air Transport Dangerous Regulations: - 14.4 Package group European Land Transport Dangerous Regulations: -International Maritime Dangerous Regulations: -International Air Transport Dangerous Regulations: - 14.5 Environmental hazards European Land Transport Dangerous Regulations: No International Maritime Transport Dangerous Regulations Maritime Pollutants: No International Air Transport Risk Regulations: No 14.6 Special reminder to users No data available |
