CAS Number109-16-0
Synonyms1,2-Ethanediylbis(oxy-2,1-ethanediyl) bis(2-methylacrylate); Ethy; tgm3pc; TEGDMA; TEDMA; EINECS 203-652-6; MFCD00008591; triethyleneglycol dimethylacrylate; tgm3s; 2-Propenoic acid, 2-methyl-, 1,2-ethanediylbis(oxy-2,1-ethanediyl) ester; TGM 3; tgm35; (Ethane-1,2-diylbis(oxy))bis(ethane-2,1-diyl) bis(2-methylacrylate); Ethane-1,2-diylbis(oxyethane-2,1-diyl) bis(2-methylacrylate); Triethylene glycol dimethacrylate; ethane-1,2-diylbis(oxyethane-2,1-diyl) bis(2-methylprop-2-enoate)

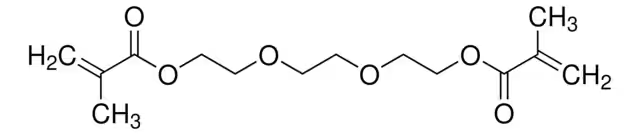

Molecular FormulaCH2=C(CH3)COO(CH2CH2O)3COC(CH3)=CH2
Molecular Weight286.32
Purity95%
Density1.1±0.1 g/cm3
Boiling Point170-172 °C/5 mmHg (lit.)
Melting Point-52°C
Appearanceliquid
EINECS203-652-6
Symbol
Signal WordWarning
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 109-16-0 |
| Catalog No. | 2A-9018670 |
| Chinese Name | 三乙二醇二甲基丙烯酸酯 |
| Synonyms | 1,2-Ethanediylbis(oxy-2,1-ethanediyl) bis(2-methylacrylate); Ethy; tgm3pc; TEGDMA; TEDMA; EINECS 203-652-6; MFCD00008591; triethyleneglycol dimethylacrylate; tgm3s; 2-Propenoic acid, 2-methyl-, 1,2-ethanediylbis(oxy-2,1-ethanediyl) ester; TGM 3; tgm35; (Ethane-1,2-diylbis(oxy))bis(ethane-2,1-diyl) bis(2-methylacrylate); Ethane-1,2-diylbis(oxyethane-2,1-diyl) bis(2-methylacrylate); Triethylene glycol dimethacrylate; ethane-1,2-diylbis(oxyethane-2,1-diyl) bis(2-methylprop-2-enoate) |
| Molecular Formula | CH2=C(CH3)COO(CH2CH2O)3COC(CH3)=CH2 |
| Molecular Weight | 286.32 |
| Purity | 95 |
| Density | 1.1±0.1 g/cm3 |
| Boiling Point | 170-172 °C/5 mmHg (lit.) |
| Melting Point | -52°C |
| Appearance | liquid |
| Water Solubility | Soluble in: ethanol, ether |
| Storage Condition | 2-8°C |
| EINECS | 203-652-6 |
| HTC | 2918990090 |
| PubChem ID | 24855819 |
| MDL Number | MFCD00008591 |
| SMILES | CC(=C)C(=O)OCCOCCOCCOC(=O)C(C)=C |
| InChI | 1S/C14H22O6/c1-11(2)13(15)19-9-7-17-5-6-18-8-10-20-14(16)12(3)4/h1,3,5-10H2,2,4H3 |
| InChI Key | HWSSEYVMGDIFMH-UHFFFAOYSA-N |
| Beilstein/REAXYS | 1797351 |
| NACRES Code | NA.23 |
| UNSPSC | 12162002 |
| Hazard Symbols | Transport |
| MSDS | msds/18670_1_109_16_0.pdf |
| Tax Rebate | 13.0% |
| Supervision | None. MFN tariff: 6.5%. Ordinary tariff: 30.0% |
| Transport Info | Shipping Name: UN |
| MSDS Transport Info | Module 14. Shipping information 14.1 UN dangerous goods number European Land Transport Dangerous Regulations: -International Maritime Transport Dangerous Regulations: -International Air Transport Dangerous Regulations: 3334 14.2 United Nations shipping name European Land Transport Dangerous Regulations: Non-dangerous goods IMDG Code: Non-dangerous goods Aviation regulated liquid, n.o.s. (2,2'-Ethylenedioxydiethyl dimethacrylate) 14.3 Transport hazard categories European land transport danger code: -International sea transport danger code: -International air transport danger code: 9 14.4 Package group European Land Transport Dangerous Regulations: -International Maritime Transport Dangerous Regulations: -International Air Transport Dangerous Regulations: III 14.5 Environmental hazards European Land Transport Danger Regulations: No International Maritime Danger Regulations International Air Transport Danger Regulations: No Marine pollutants (yes/no): No 14.6 Special reminder to users No data available |
