CAS Number100-22-1
Synonymstetramethylphenylenediamine; Wurster's blue; N,N,N′,N′-tetramethyl-p-phenylenediamine; EINECS 202-831-6; N,N,N',N'-Tetramethyl-p-phenylenediamine; N,N,N',N'-Tetramethyl-1,4-benzenediamine; N,N,N′,N′-tetramethyl-para-phenylenediamine; 1-N,1-N,4-N,4-N-tetramethylbenzene-1,4-diamine; N,N,N′,N′-Tetramethyl-1,4-phenylenediamine; MFCD00008309; n,n,n',n'-tetramethyl-p-phenylenediamine; N,N,N',N'-tetramethylbenzene-1,4-diamine; N,N,N,N-Tetramethyl-p-phenylenediamine; 1,4-bis(dimethylamino)benzene

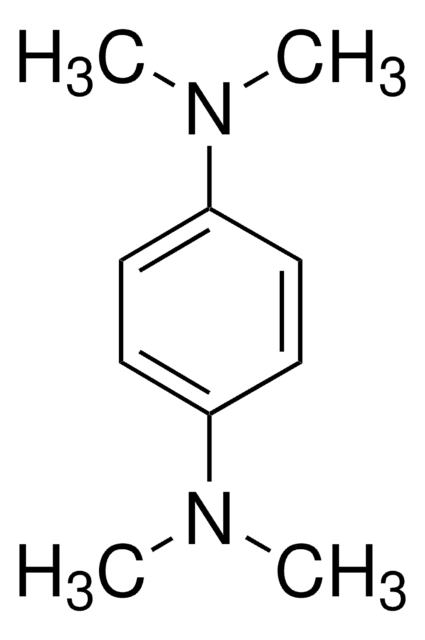

Molecular FormulaC6H4[N(CH3)2]2
Molecular Weight164.25
Purity99%
Density1.0±0.1 g/cm3
Boiling Point260 °C (lit.)
Melting Point49-51 °C (lit.)
Appearanceflakes
EINECS202-831-6
Symbol
Signal WordWarning
| Chemical & Physical Properties | |
|---|---|
| CAS Number | 100-22-1 |
| Catalog No. | 2A-9018184 |
| Chinese Name | N,N,N',N'-四甲基对苯二胺 |
| Synonyms | tetramethylphenylenediamine; Wurster's blue; N,N,N′,N′-tetramethyl-p-phenylenediamine; EINECS 202-831-6; N,N,N',N'-Tetramethyl-p-phenylenediamine; N,N,N',N'-Tetramethyl-1,4-benzenediamine; N,N,N′,N′-tetramethyl-para-phenylenediamine; 1-N,1-N,4-N,4-N-tetramethylbenzene-1,4-diamine; N,N,N′,N′-Tetramethyl-1,4-phenylenediamine; MFCD00008309; n,n,n',n'-tetramethyl-p-phenylenediamine; N,N,N',N'-tetramethylbenzene-1,4-diamine; N,N,N,N-Tetramethyl-p-phenylenediamine; 1,4-bis(dimethylamino)benzene |
| Molecular Formula | C6H4[N(CH3)2]2 |
| Molecular Weight | 164.25 |
| Purity | 99 |
| Density | 1.0±0.1 g/cm3 |
| Boiling Point | 260 °C (lit.) |
| Melting Point | 49-51 °C (lit.) |
| Appearance | flakes |
| Water Solubility | slightly in cold, more in hot water |
| Storage Condition | The warehouse is ventilated and dried at low tempe |
| Packaging | II |
| Application | N,N,N′,N′-Tetramethyl-p-phenylenediamine (TMPD) is a redox indicator. N,N,N′,N′-Tetramethyl-p-phenylenediamine can be used to study cellular respiratory damage. |
| EINECS | 202-831-6 |
| HTC | 2921519090 |
| PubChem ID | 57654696 |
| MDL Number | MFCD00008309 |
| SMILES | CN(C)c1ccc(cc1)N(C)C |
| InChI | 1S/C10H16N2/c1-11(2)9-5-7-10(8-6-9)12(3)4/h5-8H,1-4H3 |
| InChI Key | CJAOGUFAAWZWNI-UHFFFAOYSA-N |
| Beilstein/REAXYS | 1564025 |
| NACRES Code | NA.22 |
| UNSPSC | 12352100 |
| Hazard Symbols | 6.1(a) |
| MSDS | msds/18184_1_100_22_1.pdf |
| Bioactivity | N,N,N′,N′-Tetramethyl-p-phenylenediamine (TMPD) is an redox indicator. N,N,N′,N′-Tetramethyl-p-phenylenediamine can be used for the research of impairment of cell respiration[1][2]. Related Catalog Signaling Pathways >> Others >> Others Research Areas >> Metabolic Disease References [1]. Zhou S, Yao Y, et al. A cytochrome c-enhanced peroxidation reaction with potential use in screening dietary antioxidants. J Pharm Biomed Anal. 2004 Mar 10;34(5):1057-61. [2]. Sarti P, et al. Permeability of rat heart myocytes to cytochrome c. Cell Mol Life Sci. 1999 Dec;56(11-12):1061-9. Chemical & Physical Properties Density 1.0±0.1 g/cm3 Boiling Point 260.6±13.0 °C at 760 mmHg Melting Point 49-51 °C(lit.) Molecular Formula C10H16N2 Molecular Weight 164.25 Flash Point 104.9±7.7 °C Exact Mass 164.131348 PSA 6.48000 LogP 2.08 Vapour Pressure 0.0±0.5 mmHg at 25°C Index of Refraction 1.578 InChIKey CJAOGUFAAWZWNI-UHFFFAOYSA-N SMILES CN(C)c1ccc(N(C)C)cc1 Stability Stable, but may be air or light sensitive. Combustible. Incompatible with acids, acid chlorides, acid anhydrides, oxidizing agents. Water Solubility slightly in cold, more in hot water |
| Use of | N,N,N′,N′-Tetramethyl-p-phenylenediamine (TMPD) is an redox indicator. N,N,N′,N′-Tetramethyl-p-phenylenediamine can be used for the research of impairment of cell respiration[1][2]. Properties Articles11 Name N,N,N',N'-Tetramethyl-1,4-phenylenediamine Synonym More Synonyms Wurster's blue Biological Activity Description N,N,N′,N′-Tetramethyl-p-phenylenediamine (TMPD) is an redox indicator. N,N,N′,N′-Tetramethyl-p-phenylenediamine can be used for the research of impairment of cell respiration[1][2]. Related Catalog Signaling Pathways >> Others >> Others Research Areas >> Metabolic Disease References [1]. Zhou S, Yao Y, et al. A cytochrome c-enhanced peroxidation reaction with potential use in screening dietary antioxidants. J Pharm Biomed Anal. 2004 Mar 10;34(5):1057-61. [2]. Sarti P, et al. Permeability of rat heart myocytes to cytochrome c. Cell Mol Life Sci. 1999 Dec;56(11-12):1061-9. Chemical & Physical Properties Molecular Formula C10H16N2 Exact Mass 164.131348 PSA 6.48000 Index of Refraction 1.578 InChIKey CJAOGUFAAWZWNI-UHFFFAOYSA-N Stability Stable, but may be air or light sensitive. Combustible. Incompatible with acids, acid chlorides, acid anhydrides, oxidizing agents. Water Solubility slightly in cold, more in hot water |
| Tax Rebate | 17.0% |
| Supervision | None. MFN tariff: 6.5%. Ordinary tariff: 30.0% |
| Transport Info | Product name: Purity: 99.0% |
| MSDS Transport Info | Module 14. Shipping information 14.1 UN number European Dangerous Regulations for land transport: 2811 International Dangerous Regulations for sea transport: 2811 International Dangerous Regulations for air transport: 2811 14.2 Names specified by the United Nations (UN) European Land Transport Dangerous Regulations: TOXIC SOLID, ORGANIC, N.O.S. (N,N,N',N'-Tetramethyl-p-phenylenediamine) IMDG: TOXIC SOLID, ORGANIC, N.O.S. (N,N,N',N'-Tetramethyl-p-phenylenediamine) International air transport hazard regulations: Toxic solid, organic, n.o.s. (N,N,N',N'-Tetramethyl-p-phenylenediamine) 14.3 Transport hazard categories European Land Transport Danger Regulations: 6.1 International Maritime Transport Danger Regulations: 6.1 International Air Transport Danger Regulations: 6.1 14.4 Package group European Land Transport Danger Regulations: III International Maritime Transport Danger Regulations: III International Air Transport Danger Regulations: III 14.5 Environmental hazards European Land Transport Dangerous Regulations: No International Maritime Transport Dangerous Regulations Maritime Pollutants: No International Air Transport Risk Regulations: No 14.6 Special precautions for users No data available The company is not responsible for any damage caused by any operation or contact with the above products. For more terms of use, see invoice or package The reverse side of the mounting strip. |
